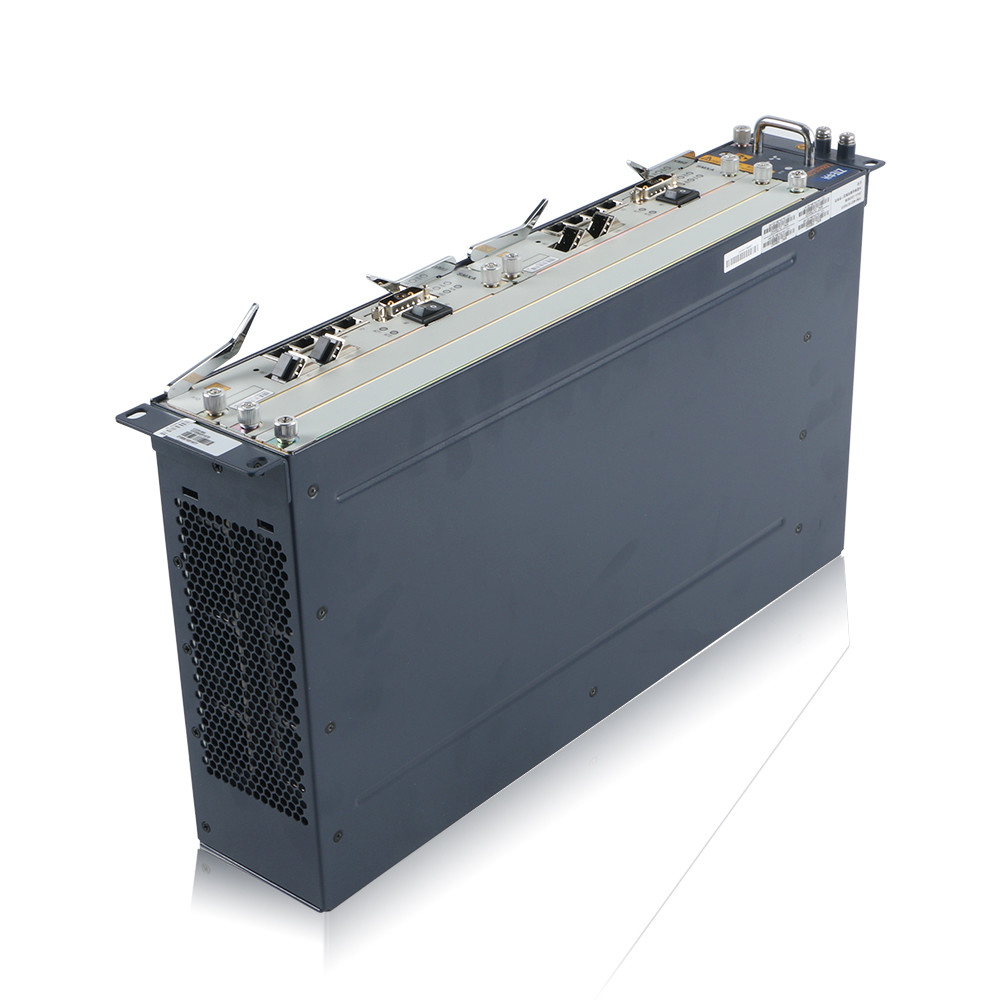

ワイヤーで縛られたタイプOLTの光学ライン ターミナルZTE ZXA10 C320 1 Smxa 3つの10gモジュール1台の手押車1 Gtgh

Zxa C320 1 Smxa 3 10g Modules 1 Pram 1 Gtgh

ZXA10 C320,a small size,full-service optical access convergent platform,provides carrier class QoS and reliable network to meet the requirements for small-scale implementation of FTTx services.

OLT C320
Dimensions:60x39x25cm
Weight:17 kg (7 kg) empty
Power consumption:GPON < 200W,EPON < 130W
Power Supply:Working voltage: -48 V (±20%) , later will support 220V AC (±20%, 50Hz)
Operating temperature: -5 °C ~45 °C( long term), -25°C ~55°C (short term)
Operating humidity: 5% ~ 95%, non-condensing
Air pressure: 70 kPa - 106 kPa
Key Features
1. Unified platform for GPON,EPON and P2P
2. Small size and compact design, flexible network and fast deployment
3. 2U frame with 2 service slots, compatible with ZXA10 C300 line cards
4. Abundant service support capability: IPTV, VoIP,HSI, VPN, mobile backhaul, etc
5. Diverse interfaces: P2MP/P2P /TDM interfaces for business and residential application
6. Higher security assurance: ONT authentication,user ID identification, port isolation, address binding, packet filtering, and broadcast packet suppression.
7. High reliability: key parts redundancy; support Type B and Type C protection for PON downlink and LACP/ STP/RSTP/MSTP/ZESR for uplink
8. Service differentiation: Comprehensive QoS mechanisms for voice, video and high speed Internet services.
9. Support DC input redundancy
10. Support 1:1 protection for PON interfaces
11. Support 1:1 protection for SW (core card) card
12. Support Synchronous Ethernet and 1588v2
PON Features
1/EPON compliant with IEEE 802.3ah
2/GPON compliant with ITU G.984.x
3/Support 1:64 optical split ratio for GPON/EPON
4/Support OLS (Optical Laser Supervising )
5/Max logical reach: 60km
6/Max physical reach: 20km
7/Max link difference: 20km
8/High-efficient DBA: NSR-DBA,SR-DBA
9/Support IEEE 1588V2,Synchronous Ethernet
10/Transceiver power budget: Class B+ or class C+
11/Type B and type C optical uplink protection
12/Support FEC
13/Support AES128
14/Support SCB
15/Support 1550nm for third party CATV broadcasting
Security
L2- L4 ACL
IP and MAC source guard
Resistance against DOS attacks
MAC/IP anti-spoofing (MAC binding,IP binding, DHCP snooping)
Anti-flooding: broadcast packet suppression, IGMP packet suppression, DHCP packet suppression
MAC address number limit based on VLAN or GEM-port
Port mirroring
User port identification such as:PPPOE+ and DHCP Option 82
C320
English Version/Software
All products we supplied are English version and original.
